Air Craft Unit Specifications

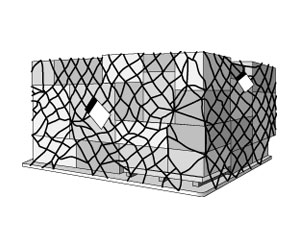

P1P/PAG PALLET
 |
Base dimensions | Max. gross weight | IATA codes | Suitable for the following aircraft |
| Cm: (L) 317.5 x (W) 223.5 Inches: (L) 125 x (W) 88 Tare weight: 110 kg |
Lower deck: 4,626 kg Main deck: 6,000 kg |
PIA, PIC, PID, PIG, PIP, PIX, PAG, PAJ, PAP, PAA, PAX | A300, A310, B747, B767, B777, A340 |
P1P/PAG PALLET | |
| |
| Base dimensions | |
| Cm | (L) 317.5 x (W) 223.5 |
| Inches | (L) 125 x (W) 88 |
| Tare weight | 110 kg |
| Max. gross weight | |
| Lower deck | 4,626 kg |
| Main deck | 6,000 kg |
| IATA codes | |
| PIA, PIC, PID, PIG, PIP, PIX, PAG, PAJ, PAP, PAA, PAX | |
| Suitable for the following aircraft | |
| A300, A310, B747, B767, B777, A340 | |

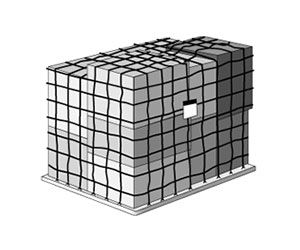

P6P/PMC pallet
 |
Base dimensions | Max. gross weight | IATA codes | Suitable for the following aircraft |
| Cm: (L) 317.5 x (W) 242.8 Inches: (L) 125 x (W) 96 Tare weight: 120 kg |
Lower deck: 4,626 kg (depending on aircraft) Lower deck: 5,035 kg (depending on aircraft) Main deck: 6,800 kg |
P6C, P6P, PQP, PMC, PMP | A300, A310, A340, B747, B767, B777 |
P6P/PMC PALLET | |
| |
| Base dimensions | |
| Cm | (L) 317.5 x (W) 242.8 |
| Inches | (L) 125 x (W) 96 |
| Tare weight | 120 kg |
| Max. gross weight | |
| Lower deck | 4,626 kg (depending on aircraft) |
| Lower deck | 5,035 kg (depending on aircraft) |
| Main deck | 6,800 kg |
| IATA codes | |
| P6C, P6P, PQP, PMC, PMP | |
| Suitable for the following aircraft | |
| A300, A310, A340, B747, B767, B777 | |

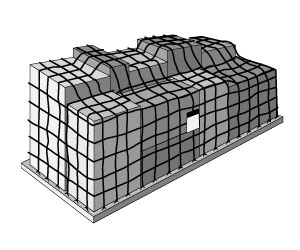

PGA pallet
| Base dimensions | Max. gross weight | IATA codes | Suitable for the following aircraft |
| Cm: (L) 605.8 x (W) 243.8 Inches: (L) 238.5 x (W) 96 Tare weight: 540 kg |
11,300 kg | P7A, P7E, P7F, PSG, PGE, PGA | B747-MD (freighter) |
PGA PALLET | |
| |
| Base dimensions | |
| Cm | (L) 605.8 x (W) 243.8 |
| Inches | (L) 238.5 x (W) 96 |
| Tare weight | 540 kg |
| Max. gross weight | |
| 11,300 kg | |
| IATA codes | |
| P7A, P7E, P7F, PSG, PGE, PGA | |
| Suitable for the following aircraft | |
| B747-MD (freighter) | |

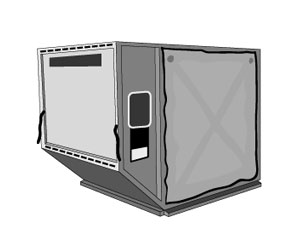

LD3/AKE/AVE container
| Base dimensions | Top dimensions | Height dimensions | Max. gross weight | IATA codes | Suitable for the following aircraft |
| Cm: (L) 156.2 x (W) 153.4 Inches: (L) 65 x (W) 60.4 |
Cm: (L) 200.6 x (W) 149.4 Inches: (L) 79.0 x (W) 58.8 |
Cm: 162.6 Inches: 64 Tare weight: 82 kg |
1,587 kg | AVA, AVB, AVE, AKE, AVM, AVN, RKN, RVB, RVE, RVN | A300, A310, B747, B777, A340 |
LD3/AKE/AVE CONTAINER | |
| |
| Base dimensions | |
| Cm | (L) 156.2 x (W) 153.4 |
| Inches | (L) 65 x (W) 60.4 |
| Top dimensions | |
| Cm | (L) 200.6 x (W) 149.4 |
| Inches | (L) 79.0 x (W) 58.8 |
| Height dimensions | |
| Cm | 162.6 |
| Inches | 64 |
| Tare weight | 82 kg |
| Max. gross weight | |
| 1,587 kg | |
| IATA codes | |
| AVA, AVB, AVE, AKE, AVM, AVN, RKN, RVB, RVE, RVN | |
| Suitable for the following aircraft | |
| A300, A310, B747, B777, A340 | |

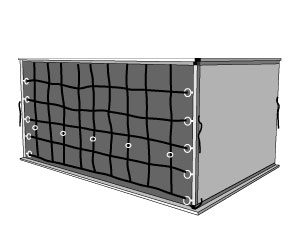

LD9/AAP container
 |
Base dimensions | Height dimensions | Max. gross weight | IATA codes | Suitable for the following aircraft |
| Cm: (L) 317.5 x (W) 223.5 Inches: (L) 125 x (W) 88 |
Cm: 162.6 Inches: 64 Tare weight: 270 kg |
Lower deck: 1,587 kg Main deck: 6,000 kg |
AAZ, AAP, RAZ, RAP | A300, A310, B747, B767, B777, A340 |
LD9/AAP CONTAINER | |
| |
| Base dimensions | |
| Cm | (L) 317.5 x (W) 223.5 |
| Inches | (L) 125 x (W) 88 |
| Height dimensions | |
| Cm | 162.6 |
| Inches | 64 |
| Tare weight | 270 kg |
| Max. gross weight | |
| Lower deck | 1,587 kg |
| Main deck | 6,000 kg |
| IATA codes | |
| AAZ, AAP, RAZ, RAP | |
| Suitable for the following aircraft | |
| A300, A310, B747, B767, B777, A340 | |

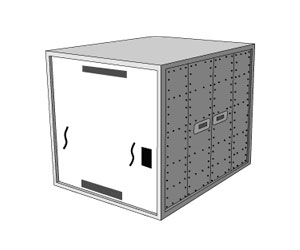

M1/AMA container
 |
Base dimensions | Height dimensions | Max. gross weight | IATA codes | Suitable for the following aircraft |
| Cm: (L) 317.5 x (W) 243.8 Inches: (L) 125 x (W) 96 |
Cm: 243.8 Inches: 96 Tare weight: 340 kg |
6,800 kg | AQ6, AQA, AMA, AMK, RQA, AQD | B747 |
M1/AMA CONTAINER | |
| |
| Base dimensions | |
| Cm | (L) 317.5 x (W) 243.8 |
| Inches | (L) 125 x (W) 96 |
| Height dimensions | |
| Cm | 243.8 |
| Inches | 96 |
| Tare weight | 340 kg |
| Max. gross weight | |
| 6,800 kg | |
| IATA codes | |
| AQ6, AQA, AMA, AMK, RQA, AQD | |
| Suitable for the following aircraft | |
| B747 | |
